WL-840B-A Box Industrial Private Cloud
|
WL-840B-A as the first integrated OT solution designed specifically for Industry environments, the award-winning1 WL-840B-A integrates servers, storage, networking and management together in a single, compact chassis with office-optimized dimensions, acoustics and security. Employing the latest WiCloud technology and high-availability features, WL-840B-A can help you gain fast application response times, run multiple applications that need performance or low latency, power through peak processing periods and scale for future business growth. |
 |
Drive Tier 1, back-end workloads with 4-socket, 1U server nodes featuring huge memory capacity, wide network bandwidth and low-latency Express Flash storage. Optional redundant RAID Controller provides high-availability RAID controller failover inside the chassis.
Support for optional general-purpose computing on graphics processor units (GPGPU) enables virtual desktop infrastructure in remote industry environments.
● Up to four server nodes with flexible configurations that meet your specific needs
● Support for New-generation Inter V3 CPU 2-socket 16 core
● Hot-plug and swappable SSDs
● Optional hot-plug and swappable power supply units and fans

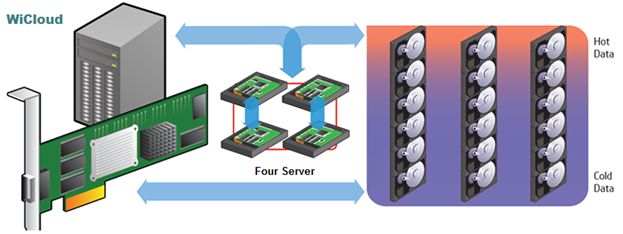

● All server nodes have access to the low-latency internal shared storage, which is essential for virtualization. This also helps enable efficient processing through peak periods and can improve server-use flexibility.
● Each server node to see the storage as its own singular storage pool
● Live migration of virtual machines within the WL-840B-A cabinet without the expense of cabling, powering and managing a SAN
● Choice of up to 12 x 3.5" SSDs (48TB max.) to scale for capacity.
● Simple, efficient and versatile systems management
|
PROCESSORS |
|
|
Logical processor |
1-2 socket per customer replaceable unit (CRU) |
|
Processor |
Intel® Xeon® processor E5-2603, 2.4 GHz |
|
Cores |
8 (per processor) |
|
L2 cache |
10 MB (per processor) |
|
Intel QPI speed |
6.4 GT/s |
|
Maximum memory bandwidth |
34.1 GB/s |
|
MEMORY |
|
|
Min/max memory |
16 GB/128 GB DDR3 |
|
DIMM slots |
16 (per CRU) |
|
I/O SUBSYSTEM |
|
|
Integrated PCI adapter slots |
1 PCI-Express (per CRU) |
|
STORAGE SUBSYSTEM |
|
|
Internal system drive bays |
4 6Gb SAS 3.5” (per CRU) |
|
Internal SAS disk drives supported |
15K/ SSD (4 TB, 8 TB) |
|
Expansion drive slots |
Up to 24 x 3.5in NLSAS, SAS, or SAS SSD hot-plug drives |
|
8Gb Fibre Channel for external storage |
up to 1 optional (per CRU) |
|
EMBEDDED I/O |
|
|
10/100/1000 Ethernet ports |
2 (per CRU) |
|
10/100 Management Ethernet ports |
1 (per CRU) |
|
USB ports |
4 (per CRU) |
|
SWITCH |
|
|
10/100/1000 Ethernet ports |
24 |
|
Chassis enclosure |
2U rack enclosure |
|
MANAGEABILITY |
|
|
Baseboard management controller |
standard |
|
Virtual Technician Module (VTM) |
standard |
|
Graphics adapter |
1 VGA port per system |
|
Optional modem |
1 on rear panel |
|
PCI ADAPTERS |
|
|
1 Gigabit dual-port Ethernet |
up to 1 optional (per CRU) |
|
8Gb Fibre Channel for external storage |
up to 1 optional (per CRU) |
|
SERVICEABILITY |
|
|
Hot-swappable components |
CPU / I/O module, disks |
|
OPERATING SYSTEM |
|
|
Virtualization |
Windows server 2012 R2 Hyper-V |
|
POWER AND PACKAGING |
|
|
Input voltage |
100-127, 200-240 VAC; 50 Hz, 60 Hz |
|
System dimension (H x W x D) |
21” (12U) x 17.5” x 30.1” with bezel |
|
Weight (fully loaded including rails) |
231.86lbs(105.17 kg ) |
