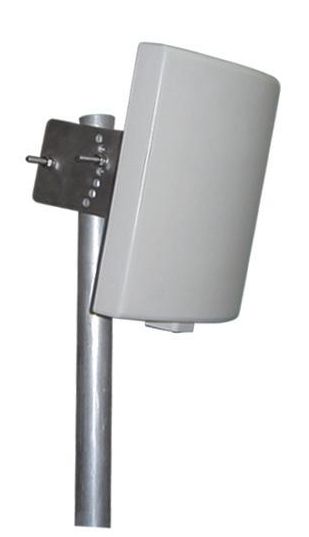

WL-2414-DP 2.4GHz Directional Panel Antenna

Model

WL-2414-DP

Frequency (MHz)

2400~2500

Polarization

Vertical

Gain (dBi)

14

Electrical downtilt (°)

0

Half power beamwidth (°)

Horizontal:30

Vertical:28

F/B Ratio (dB)

≥25

Impedance (Ω)

50

VSWR

≤1.5

Max Power(W)

50

Lighting Protection

DC Ground

  • 2.4GHz UNII Applications
  • 2.4GHz ISM Applications
  • 2.4GHz Wireless LAN Systems
  • Support IEEE802.11a,g
  • WiFi
  • Wireless Internet Provider “Cell” sites
  • High Gain
  • Light Weight
  • Compact Size
  • DC Ground for Lightning Protection
  • Supplied with mast mounting kits

Mechanical Specifications

Connector Position

Bottom

Connector

N Female or customized

Dimension(L×W×H:mm)

223×194×46

Weight (kg)

1.1

Radome Material

ABS

Radome Color

White

Mechanical tilt capability (°)

-20~20

Operating Temperature(℃)

-40~60

Rated Wind Velocity (m/s)

60

Mast Diameter (mm)

35~50

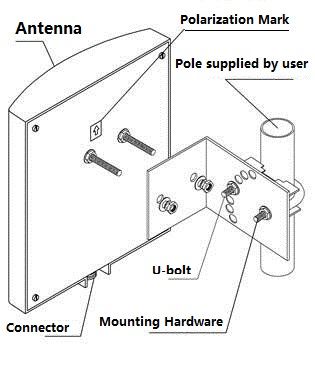

Mounting Kits

MK004 L-type steel bracket
