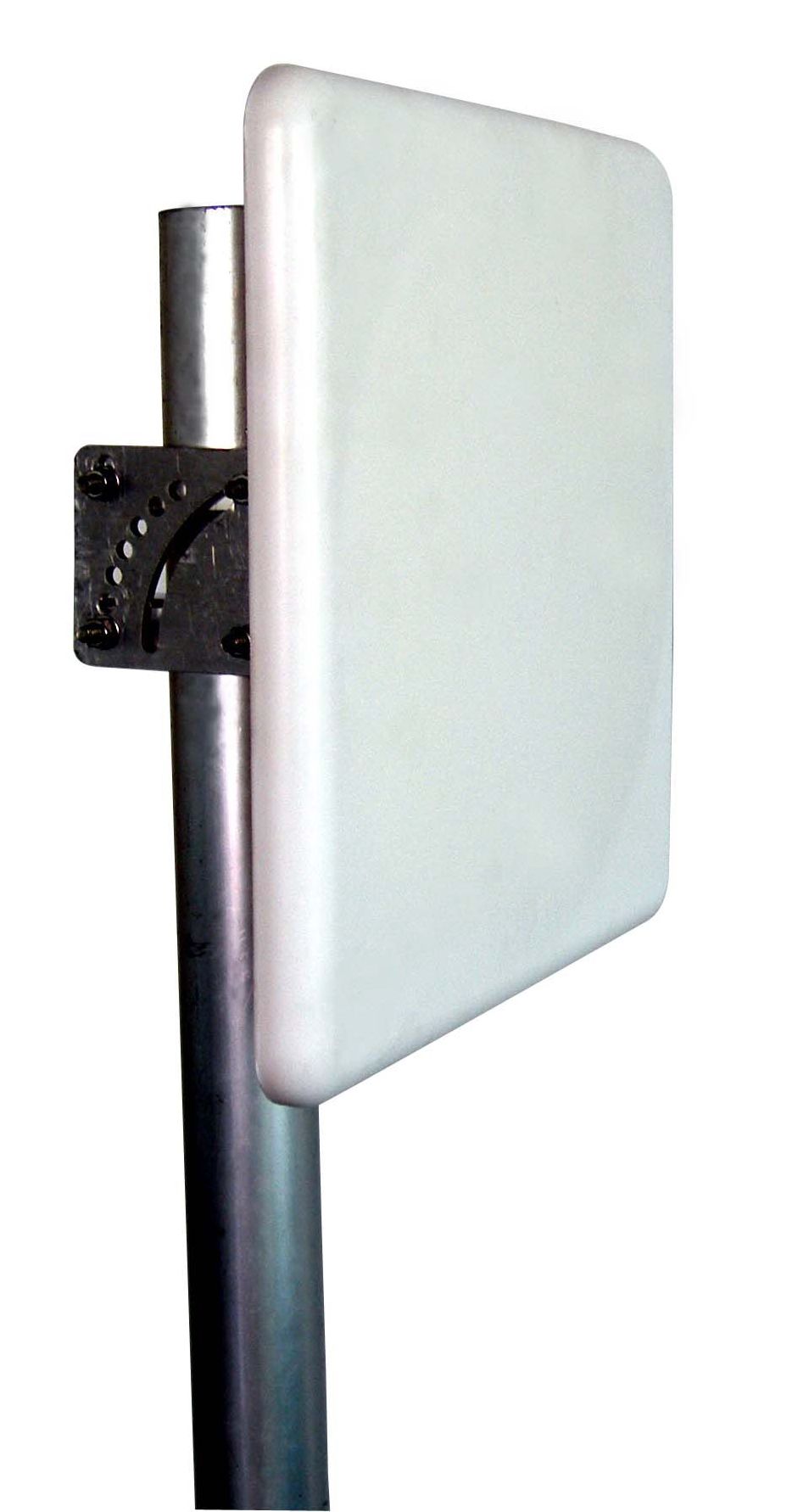

WL-5017-DP3 5GHz MIMO Directional Panel Antenna

Model

WL-5017-DP3

Frequency (MHz)

5150～5850

Polarization

2×Vertical+1×Horizontal

Gain (dBi)

17

Electrical downtilt (°)

0

Half power beamwidth (°)

Horizontal:20

Vertical:20

F/B Ratio (dB)

≥25

Impedance (Ω)

50

VSWR

≤2

Max Power(W)

20

Lighting Protection

DC Ground
  • 5.1/5.5/5.8GHz WLAN System
  • 5.8GHz ISM Applications
  • WiFi Access System
  • IEEE802.11a,g
  • Dual Ploarization
  • Point to point or multipoint applications
  • Wireless bridge
  • High Gain,Low VSWR
  • Light weight , Low profile
  • Strong corrosion resistance
  • Supplied with mast mounting kits

Mechanical Specifications

Connector

3×N Female

Antenna Dimension(L×W×H:mm)

306×306×25

Weight (kg)

1.4

Radome Material

ABS

Radome Color

White

Mechanical tilt capability (°)

0～60

Operating Temperature(℃)

-40～60

Rated Wind Velocity (m/s)

60

Mast Diameter (mm)

35～50

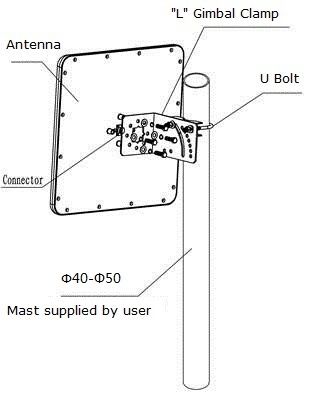

Mounting Kits

MK004 L-type steel bracket
